- Details
-
Specification
Description

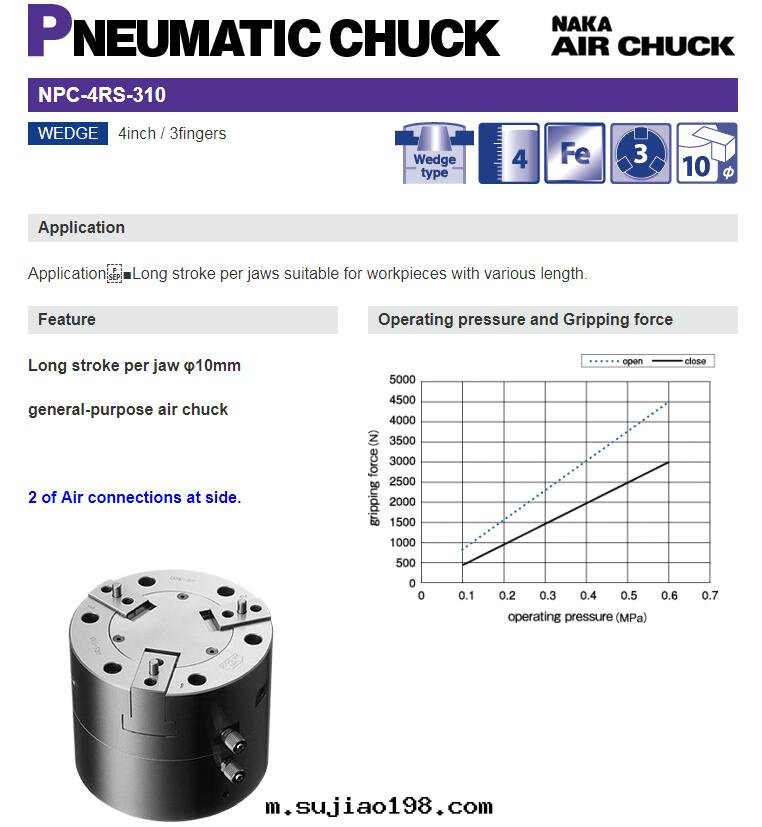

NPC-4RS- Type
310 Repeatability(mm)
0.005 Number of jaws
3 Stroke per jaw(φmm)
10 Fixing hole circle
P.C.D89 Top fixing Bolt
M5×6 Bottom insertion dimension (mm)
(inside diameter×depth凸.凹）
φ75H7×2.5 Working fluid
Compressed Air
Pneumatic operating pressure (MPa)
0.15〜0.6 Body material
Fe Weight (g)
4990
Permissible revolutions (min-1)
- Gripping force (calculated value) (N)
417（at 0.1MPa）
Dimension
-
