- Details
-
Specification
Description

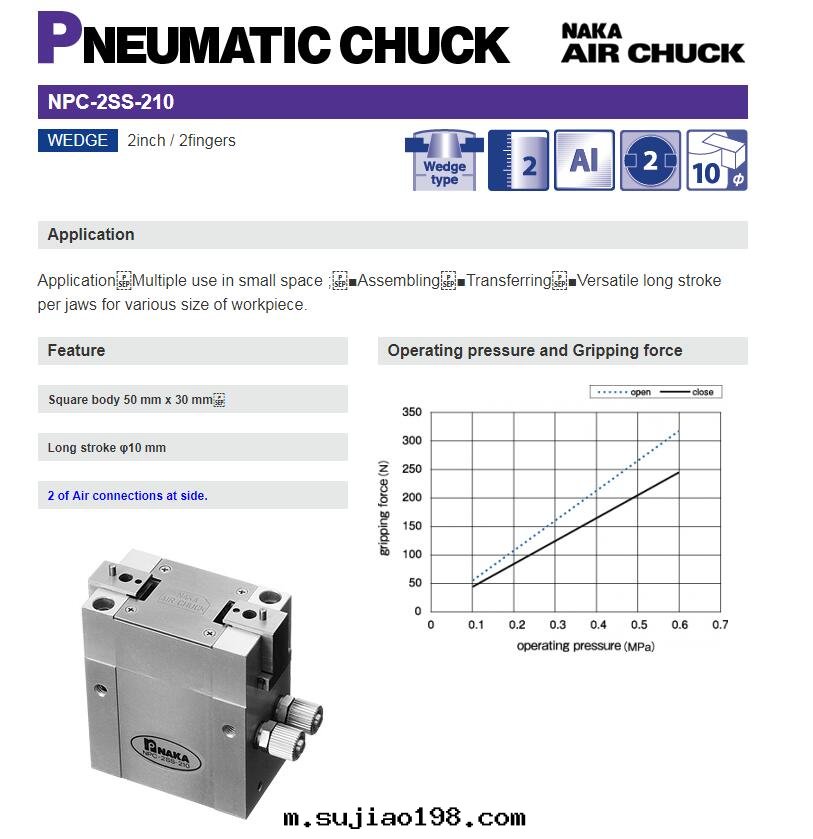

NPC-2SS- Type
210 Repeatability (mm)
0.01 Number of jaws
2 Stroke per jaw (φmm)
10 Fixing hole circle
40×22 Top fixing Bolt
M3×2 Bottom fixing Bolt
M4×2 Bottom insertion dimension (mm)
(inside diameter×depth凸.凹）
φ24 +0.05/0×1
Working fluid
Compressed Air
Pneumatic operating pressure (MPa)
0.15〜0.6 Body material
Al
Bottom fixing bolt (g)
290
Permissible revolutions (min-1)
- Gripping force (calculated value) (N)
40（at 0.1MPa）
Dimension
-
